DADA2 16S rRNA amplicon sequencing pre-processing

Introduction

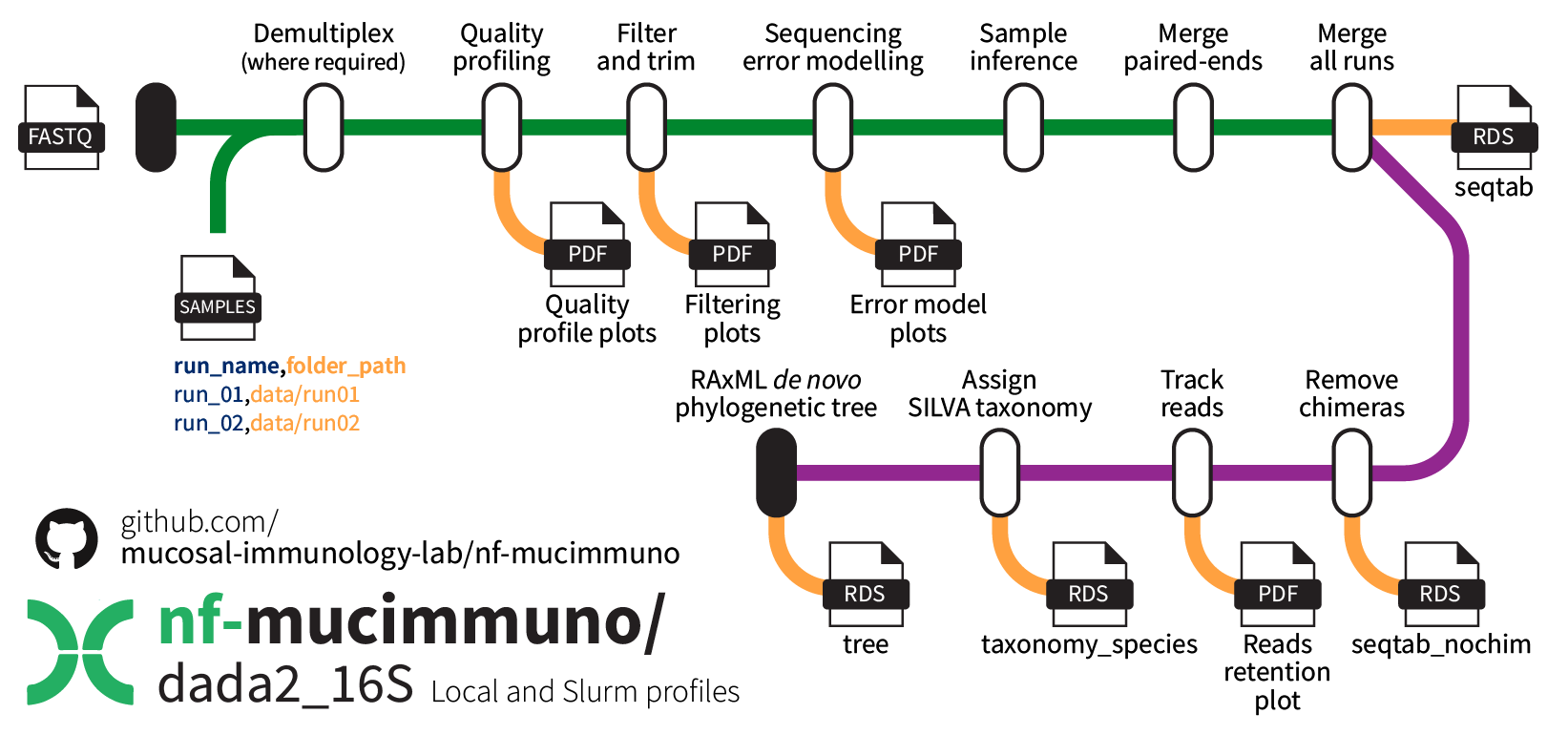

nf-mucimmuno/dada2_16S is a bioinformatics pipeline that can be used to run the popular DADA2 pre-processing pipeline for bacterial 16S rRNA amplicon sequencing data. It can handle multiple runs to generate a single unified output. It takes a samplesheet and either pre- or post-demultiplexed data (depending on what you have available), performs quality profiling, filtering and trimming, sequencing error modelling, sample inference, and merging of paired ends. From there, it combines all runs together, removes chimeras, assigns SILVA taxonomy, and generates a de novo phylogenetic tree using RAxML.

Tip

This is essentially the Nextflow version of our DADA2 pipeline guide, which you can explore here.

Usage

Download the repository 📁

This repository contains the relevant Nextflow workflow components, including a conda environment and submodules, to run the pipeline. To retrieve this repository alone, run the retrieve_me.sh script above.

Git version requirements

Git sparse-checkout is required to retrieve just the nf-mucimmuno/scRNAseq pipeline. It was only introduced to Git in version 2.27.0, so ensure that the loaded version is high enough (or that there is a version loaded on the cluster at all). As of July 2024, the M3 MASSIVE cluster has version 2.38.1 available.

# Check git version
git --version

# Load git module if not loaded or insufficient version
module load git/2.38.1

First, create a new bash script file.

# Create and edit a new file with nano
nano retrieve_me.sh

Add the contents to the file, save, and close.

#!/bin/bash

# Define variables
REPO_URL="https://github.com/mucosal-immunology-lab/nf-mucimmuno"
REPO_DIR="nf-mucimmuno"
SUBFOLDER="dada2_16S"

# Clone the repository with sparse checkout
git clone --no-checkout $REPO_URL
cd $REPO_DIR

# Initialize sparse-checkout and set the desired subfolder
git sparse-checkout init --cone
git sparse-checkout set $SUBFOLDER

# Checkout the files in the subfolder
git checkout main

# Move the folder into the main folder and delete the parent
mv $SUBFOLDER ../
cd ..
rm -rf $REPO_DIR

echo "Subfolder '$SUBFOLDER' has been downloaded successfully."

Then run the script to retrieve the repository into a new folder called dada2_16S, which will house your workflow files and results.

# Run the script
bash retrieve_me.sh

Create the conda environment 🐍

To create the conda environment, use the provided environment .yaml file. Then activate it to access required functions.

# Create the environment
mamba env create -f environment.yaml

# Activate the environment
mamba activate nextflow-dada2

Folder structure 🗂️

Because you specify the full directory path for your raw input data, you can technically house them however and wherever you like. However, below is an example of how to store runs depending on whether you have demultiplexed files or the pre-demultiplexed sequencing files.

The pipeline just looks for a demultiplexed folder inside each run

Essentially if there's an existing folder called demultiplexed, demultiplexing is skipped for that run, and the existing files are used.

• run01 requires demultiplexing, and as such simply includes R1.fastq.gz, R2.fastq.gz, and Index.fastq.gz. It also importantly contains a barcode mapping file which provides a link between the unique adapters and each sample.
• run02 however is already demultiplexed, and therefore only requires the forward (R1) and reverse (R2) reads for each sample.

Make sure you correctly name your barcode mapping file!

For runs requiring demultiplexing, the barcode mapping file must include the string barcode_to_sample in its filename.

dada2_16S/
    └── data/
        ├── run01/
        │   ├── barcode_to_sample_run01.txt
        │   ├── Index.fastq.gz
        │   ├── R1.fastq.gz
        │   └── R2.fastq.gz
        └── run02/
            └── demultiplexed/
                ├── sample1-R1.fastq.gz
                ├── sample1-R2.fastq.gz
                ├── sample2-R1.fastq.gz
                ├── sample2-R2.fastq.gz
                └── ...

Prepare your sample sheet ✏️

This pipeline requires a sample sheet to identify where your sequencing data is located. You can also change the name of your run to something some specific if you desire from the original folder name.

Your sample sheet should look as follows, ensuring you use the exact column names as below.

File paths on M3

Remember that on the M3 MASSIVE cluster, you need to use the full file path – relative file paths don't usually work.

run_name,folder_path
run_01,/path_to_pipeline/dada2_16S/data/run01
run_02,/path_to_pipeline/dada2_16S/data/run02

An example is provided here.

Running the pipeline 🏃

Now you can run the pipeline. You will need to set up a parent job to run each of the individual jobs – this can be either an interactive session, or an sbatch job. For example:

# Start an interactive session with minimal resources
smux n --time=3-00:00:00 --mem=16GB --ntasks=1 --cpuspertask=2 -J nf-STARsolo

Set the correct sample sheet location

Make sure you alter the nextflow.config file to provide the path to your sample sheet, unless it is ./samplesheet.csv which is the default for the cluster profile. Stay within the top cluster profile section to alter settings for Slurm-submitted jobs.

Inside your interactive session, be sure to activate your nextflow-dada2 environment from above. Then, inside the dada2_16S folder, begin the pipeline using the following command (ensuring you use the cluster profile to make use of the Slurm workflow manager).

# Activate conda environment
mamba activate nextflow-dada2

# Begin running the pipeline
nextflow run dada2_pipeline.nf -resume -profile cluster

Customisation ⚙️

There are some customisation options that are available within the nextflow.config file. While the defaults should be suitable for those with access to the M3 MASSIVE cluster genomics partition, for those without access, of for those who require different amounts of resources, there are ways to change these.

To adjust the cluster profile settings, stay within the appropriate section at the top of the file.

Parameters

Option	Description
sample_sheet	The file path to your sample sheet (default: './samplesheet.csv')
outdir	A new folder name to be created for your results (default: 'results')
filter_and_trim.truncLen	Reads should be truncated after this many bases (default: '240,240')
filter_and_trim.maxEE	After truncation, reads with higher than maxEE expected error will be discarded (default: '4,4')
filter_and_trim.trimLeft	The number of bases that should be trimmed from the left-hand side of the read – helps to remove custom primers and improve data retention, but may need to be set to zeros depending on your data (default: '54,54')
filter_and_trim.truncQ	Reads will be truncated at the first instance of a quality score less than or equal to this (default: '2,2')
filter_and_trim.maxN	After truncation, sequences with more than maxN N bases will be discarded (default: '0,0')
assign_taxonomy.trainSet_link	The link to the DADA2-formatted SILVA training dataset
assign_taxonomy.trainSet_file	The desired file name for the DADA2-formatted SILVA training dataset
assign_taxonomy.assignSpecies_link	The link to the DADA2-formatted species assignment dataset
assign_taxonomy.assignSpecies_file	The desired file name for the DADA2-formatted species assignment dataset

The DADA2-ready SILVA taxonomic data is sourced from here. If new updates become available, feel free to update these values (or let us know so we can update).

Read-specific filter and trim settings

Although the defaults use the same parameter values for both forward and reverse reads, you can set specific ones. For example, in the filter_and_trim.truncLen parameter of '240,240', the first value is for the forward (R1) read, and the second is for the reverse (R2) read. These can be set independently of each other.

Process

These settings relate to resource allocation and cluster settings. DE_NOVO_PHYLO_TREE is the only step that will likely longer than 4 hours for typical runs, and therefore the default option is to run this steps on the comp partition. Depending on how many runs you have, other steps may exceed the wall-time too; adjust as required.

Option	Description
executor	The workload manager (default: 'slurm')
conda	The conda environment to use (default: './environment.yaml')
queueSize	The maximum number of jobs to be submitted at any time (default: 12)
submitRateLimit	The rate allowed for job submission – either a number of jobs per second (e.g. 20sec) or a number of jobs per time period (e.g. 20/5min) (default: '1/2sec')
memory	The maximum global memory allowed for Nextflow to use (default: '320 GB')
DEMULTIPLEX.memory	Memory for DEMULTIPLEX step to use (default: '52 GB')
DEMULTIPLEX.cpus	Number of CPUs for DEMULTIPLEX step to use (default: '8')
DEMULTIPLEX.clusterOptions	Specific cluster options for DEMULTIPLEX step to use (default: '--time=4:00:00 --partition=genomics --partition=genomics')
ERROR_MODEL.memory	Memory for ERROR_MODEL step to use (default: '52 GB')
ERROR_MODEL.cpus	Number of CPUs for ERROR_MODEL step to use (default: '8')
ERROR_MODEL.clusterOptions	Specific cluster options for ERROR_MODEL step to use (default: '--time=4:00:00 --partition=genomics --partition=genomics')
MERGE_PAIRED_ENDS.memory	Memory for MERGE_PAIRED_ENDS step to use (default: '52 GB')
MERGE_PAIRED_ENDS.cpus	Number of CPUs for MERGE_PAIRED_ENDS step to use (default: '8')
MERGE_PAIRED_ENDS.clusterOptions	Specific cluster options for MERGE_PAIRED_ENDS step to use (default: '--time=4:00:00 --partition=genomics --partition=genomics')
REMOVE_CHIMERAS.memory	Memory for REMOVE_CHIMERAS step to use (default: '52 GB')
REMOVE_CHIMERAS.cpus	Number of CPUs for REMOVE_CHIMERAS step to use (default: '8')
REMOVE_CHIMERAS.clusterOptions	Specific cluster options for REMOVE_CHIMERAS step to use (default: '--time=4:00:00 --partition=genomics --partition=genomics')
ASSIGN_TAXONOMY.memory	Memory for ASSIGN_TAXONOMY step to use (default: '52 GB')
ASSIGN_TAXONOMY.cpus	Number of CPUs for ASSIGN_TAXONOMY step to use (default: '8')
ASSIGN_TAXONOMY.clusterOptions	Specific cluster options for ASSIGN_TAXONOMY step to use (default: '--time=4:00:00 --partition=genomics --partition=genomics')
DE_NOVO_PHYLO_TREE.memory	Memory for v step to use (default: '160 GB')
DE_NOVO_PHYLO_TREE.cpus	Number of CPUs for DE_NOVO_PHYLO_TREE step to use (default: '24')
DE_NOVO_PHYLO_TREE.clusterOptions	Specific cluster options for DE_NOVO_PHYLO_TREE step to use (default: '--time=24:00:00')

Outputs

Several outputs will be copied from their respective Nextflow work directories to the output folder of your choice (default: results).

Phyloseq inputs 📦

The main outputs of interest for downstream processing are the inputs to create your phyloseq object.

Output	Description
seqtab_nochim.rds	The clean counts table matrix
taxonomy_species.rds	The SILVA-assigned taxonomy table
tree.rds	The de novo phylogenetic tree

QC and filtering plots 📊

There are also a collection of quality control and filtering plots available in this directory too. Below is an example of the output structure for running a single run.

dada2_16S/
    ├── run01/
    │   └── filtering_report/
    │       └── run01_filtered/
    │           ├── error_model.pdf
    │           ├── error_model.pdf.rds
    │           ├── error_model.rds
    │           ├── filtering_report.pdf
    │           ├── filtering_report.pdf.rds
    │           ├── sample1-R1.fastq
    │           ├── sample1-R2.fastq
    │           ├── sample2-R1.fastq
    │           ├── sample2-R2.fastq
    │           └── ...
    ├── aggregated_error_plots.pdf
    ├── aggregated_filtering_plots.pdf
    ├── aggregated_quality_profiles.pdf
    ├── length_distribution.pdf
    ├── length_distribution.rds
    ├── read_tracking_report.pdf
    ├── seqtab_nochim.rds
    ├── seqtab_nochim.txt
    ├── seqtab.rds
    ├── taxonomy_species.rds
    ├── taxonomy_species.txt
    ├── taxonomy.rds
    ├── taxonomy.txt
    └── tree.rds

Rights

• Copyright ©️ 2025 Mucosal Immunology Lab, Monash University, Melbourne, Australia.
• Licence: This pipeline is provided under the MIT license.
• Authors: M. Macowan

• Illumina Utils: Meren Lab
• DADA2: Benjamin Callahan et al.
• SILVA: arb-silva.de
• RAxML: Exelixis Lab
• phangorn: Klaus Schliep et al.
• ips: Christoph Heibl et al.
